Описание

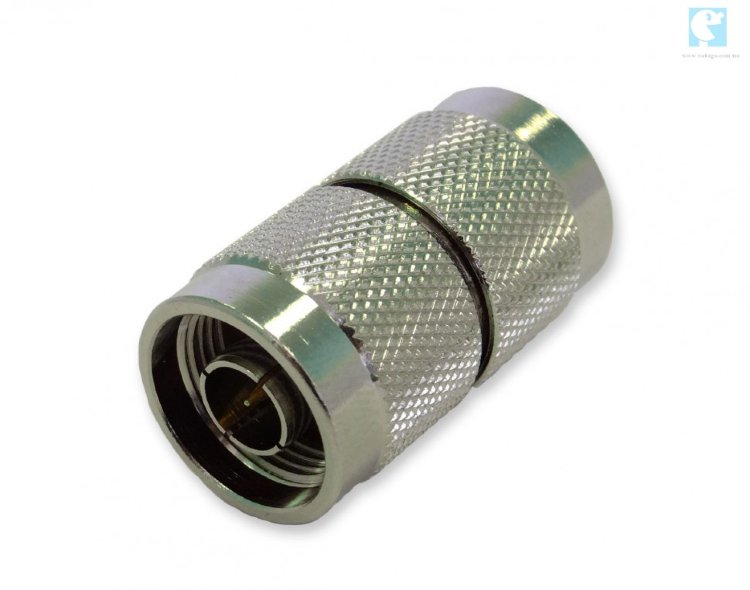

Адаптер N-male/N-male N-311
Family | Coaxial, RF - Adapters-N |
|---|---|
Series | IN-Series |
Convert From (Adapter End) | N Plug |
Convert To (Adapter End) | N Plug |
Impedance | 50 Ohm |
Style | Straight |
Mounting Type | Free Hanging (In-line) |
Technical characteristics
Temp.range................................. -65°C~ +165 °C (PE Cable)
Vibration...................................... MIL-STD-202, MethoD 213
Impedanec ...................................50?
Frequency Range...........................DC~11GHz
Working Voltage ...........................1000V max
Withstand Voltage..........................2500V rms
Contact resistance
Center Contact ..............................<=1m?
Outer Contact ................................<=1m?
Insulation resistance........................>=5000 m?
VSWR Straight ...............................<=1.15
Right angle..................................... <=1.25
Durability(mating).............................>= 500 (cycles)
APPLECABLE STANDARD
MIL-C-39012;
CECC 22210;
IEC 60169-16
